Robotics & Engineering
Price: $5,998
In Stock
Main Features
All-in-One Robotic Arm
Educational value
Engineering, Robotics, Manufacturing, Design, Computer Science, Technology
What’s in the box?
1 DOBOT M1 Robotic Arm, 1 AC Power Cable, 1 DC Power Cable, 3 Power Adapter, 4Pin Connector, Emergency Stop Switch Kit, DB9 Serial Cable, Network Cable, 1 M3x10 Screws, 2 2.5mm Wrench
Mobile / stationary
Stationary
Student to robot ratio
1 robotic arm per 1 to 5 students
Best for
College, Industry
Grade Level
CTE
Curriculum
Covering Robotics, Engineering, Science, Technology
Professional Development / Training
No training required
Warranty
1-year warranty

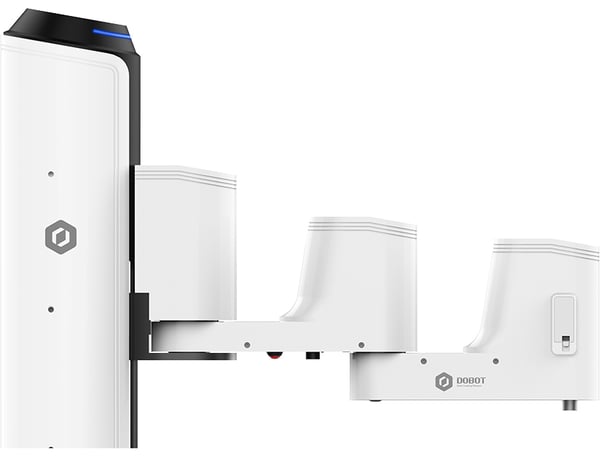

The Dobot M1 Industrial Robotic Arm is a cost-effective intelligent robotic arm for light industry. With high precision, wide working range, complete functions and secondary development, it provides users more ways to use. M1 can realize multiple functions of assembly-line work such as soldering, visual recognition and PCB plug-in, helping to construct the intelligent industrial system. No complex installation is required, M1 can be connected just in one step. It’s so light that a single person can move anytime anywhere.
Compact design enables M1 to truly realize the integration of drive control, greatly improving the working efficiency between servo drive and control system. The repetitive positioning accuracy of M1 can reach 0.02mm, the maximum working range is 400mm, and the maximum load is 1.5kg, so as to ensure the best use effect of the lightweight industrial robotic arm. The simple and concise mechanical structure enables M1 to work efficiently and it’s perfect for various assembly line work. Standardized intelligent interface and open programming language make M1 highly extensible. With different accessories, M1 can realize diverse functions. With lightweight body, easy installation and various controls, M1 can help you quickly complete the work including production and packaging.
 |
 |
Enterprises can save plenty of time and cost by setting up automatic product line with M1 for automatic packing. M1 can finish assembly line tasks instead of manual work, and can be perfectly qualified for tasks required high precision such as PCB plug-in, soldering and gluing. With the visual recognition suite, M1 can work like eyes to recognize and sort objects with different colors and shapes. M1 can be used for product quality check. With industrial cameras, M1 can recognize defective products quickly.
Specifications
 |
 |
 |

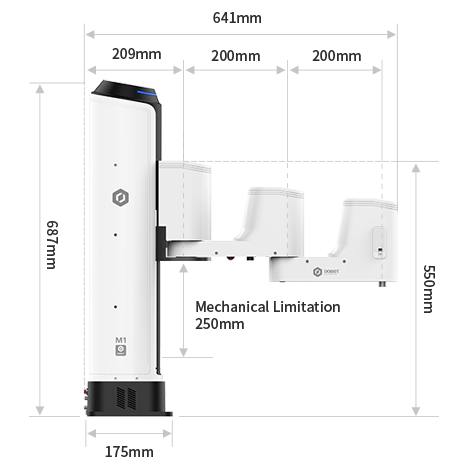

| Reach | 400 mm |

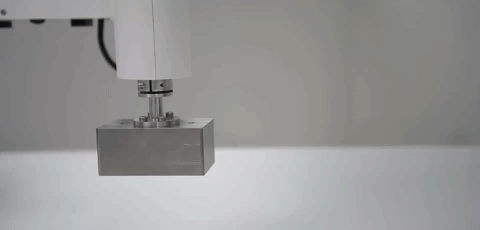

| Playload | 1.5 kg |
| Type | Mechanical limitation, Software limitation |
| Rear Arm | -90° -90°, -85° -85° |
| Maximum magnitude | Forearm, -140° -140°, -135° -135° |
| Z-axis screw | 0mm- 250mm,10mm- 235mm |
| End-effector rotation | Unlimited, -360° -360° |
| Joint speed of forearm and Rear Arm | 180°/s |
| Maximum speed | Resultant speed of the Forearm and Rear Arm, 2ooo mm/s |
| Speed of Zaxis | 1000 mm/s |

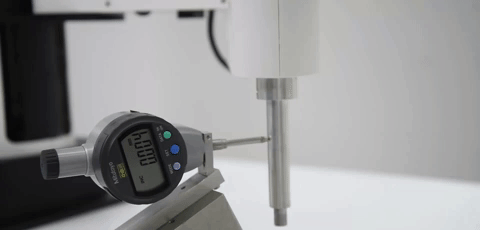

| Repeatability | 0.02 mm |
| Power | 100 -240v, 50/60 Hz |
| Communication interface | Ethernet, RS-232C |
| I/O | 22 digital outputs, 24 digital inputs, 2 DAC outputs, reserved, 6 ADC inputs |
| Software | M1 Studio |
| System | Linux |
SPECS COMPARISON
|
|
M1 |
M1 Pro |
|
Reach |
400mm |
400mm |
|
Payload |
1.5kg |
1.5kg（Max 2kg） |
|
Repeatability |
±0.02mm |
±0.02mm |
|
Maximum magnitude |
J1：-85°- 85° J2：-135°~ +135° J3：10mm- 235mm J4：-360°- 360° |
J1：-85°- 85° J2：-130°~ +130° J3：5mm- 245mm J4：-360°- 360° |
|
Maximum speed |
J1：180°/s J2：180°/s J3：1000 mm/s J4：1000°/s |
J1：180°/s J2：180°/s J3：1000 mm/s J4：1000°/s |
|
Input Requirements of Power Adapter |
100 -240 V, 50/60 Hz |
100 -240 V, 50/60 Hz |
Software Comparison
|
|
M1 |
M1 Pro |
|
PC software |
M1Studio DobotStudio2020 |
DobotSCStudio DobotStudio2020 |
|
APP |
NO |
iOS |
|
Second Development |
integrated Dobotlink |
SDK |
