Robotics & Engineering
Price: $ 1,999
In Stock
Main Features
All-in-One Robotic Arm for STEM
Educational value
Engineering, Robotics, Manufacturing, Design, Computer Science, Technology
What’s in the box?
1 DOBOT Magician Robotic Arm V3, 1 Vacuum pump kit, 1 Gripper, 1 Writing and Drawing Kit, 1 3D Printer Kit, 1 Laser engraving Kit, 1 Bluetooth and WiFi modules, 1 Joystick Control Kit, Curriculum (1 Engage! K12 site license for 1 year)
Mobile / stationary
Stationary
Student to robot ratio
1 robotic arm per 1 to 5 students
Best for
Elementary School, Middle School, High School, College, Museum, Library, Summer Camp
Grade Level
K-14
Curriculum
Covering Robotics, Engineering, Science, Technology
Professional Development / Training
No training required – available as an option
Dobot Magician V3 is a truly cutting-edge robotic arm made available for your STEAM or CTE program. It's a highly cost effective solution empowering 21st century skills and unleashing students' creativity.
- 7 Ways to Control: EEG, Bluetooth, WiFi, Mobile, PC, Gesture, Joystick
- 5 Heads: 3D Printer, Laser Engraver, Suction Cup, Gripper, Pen holder
- Graphical Programming and other 20 different Coding Languages available
Cross-subject Robotic Arm for STEAM
Dobot Magician V3 is an integration of programming, mechanics, electronics, and automation. It’s a great STEAM teaching device that strengthens knowledge across multiple subjects, through a high precision and user-friendly UI, enjoyable functions, and unlimited developing possibilities. Dobot Magician’s immersive and exploratory experience increases interest in science and technology.
It has a graphical programming environment, multiple tool heads, and the capability to work with the Arduino platform. It’s a robot for your creativity and desire to develop. With the tutorials and lessons included, the Magician is the ideal way to learn about robotic arms, hardware development, coding and automation.
Best multi-functional robotic arm for Education
The advantages of high precision (0.2mm) and switchable tool heads allow for many uses: 3D printing, pick and place, write and draw, and more. Combining them brings out even more fun, learning, and creativity through unlimited possibilities. Also, Dobot Magician is the first robotic arm that can 3D print accessible to schools for students.
|
|
|
|
|
|
Pick & Place
Using the Gripper or the Vacuum pump kit included, the Dobot can makes your students have a complete production line simulation. They can adjust the speed of the arm and have it picking up objects and placing them like in a real factory environment.
|
Laser EngravingThe Dobot arm uses the latest advanced 405nm 500mW laser tube of blue-violet emission, which gets larger output power and wider engrave range. Users can engrave personalized patterns on various material like leather, Kraft liner board, wood... |
3D PrintingMagician is precise enough for 3D printing models with nice finishing, it is comparable with many other 3D printers on the market. Thanks to its two extra stepper motor ports, Dobot Magician can also do double color 3D printing, which is compatible with mainstream open-source 3D printing software like Repetier Host and Pronterface. |

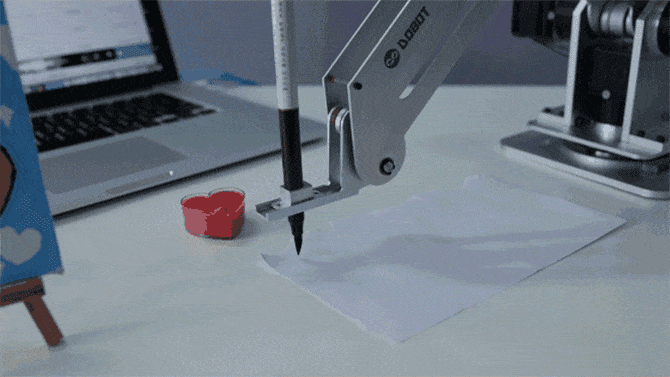

Write and DrawWith its high precision and stability, the Dobot arm can draw smooth lines. From the software interface, students can customize the image's size and position. They can also use their own customized texts and images for drawing, where they can be as creative as they want. This is a great feature that allows you to bring Art into your STEM program! |

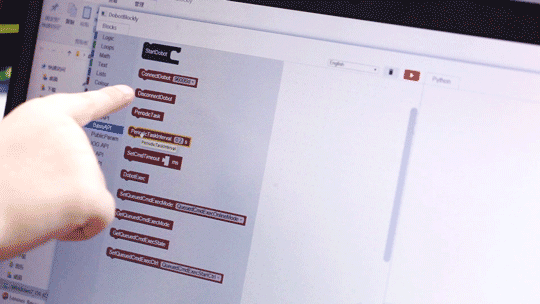

Graphical Programming Environment
DIY SUPPORTED (EXTENDABLE)

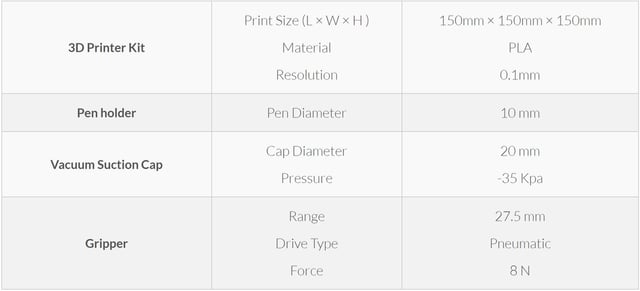

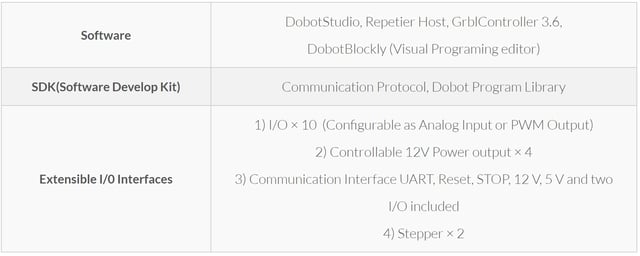

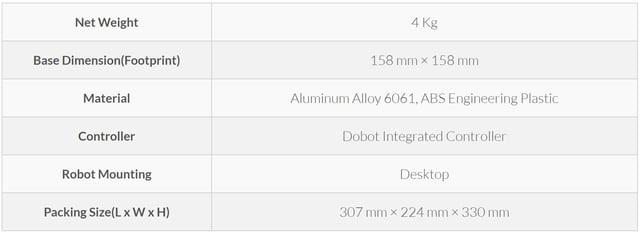

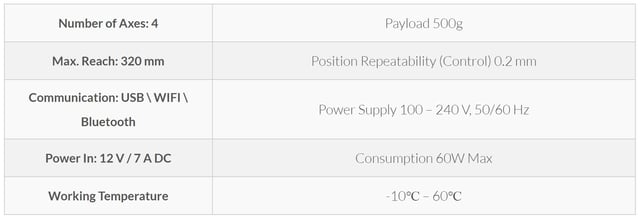

SPECIFICATIONS

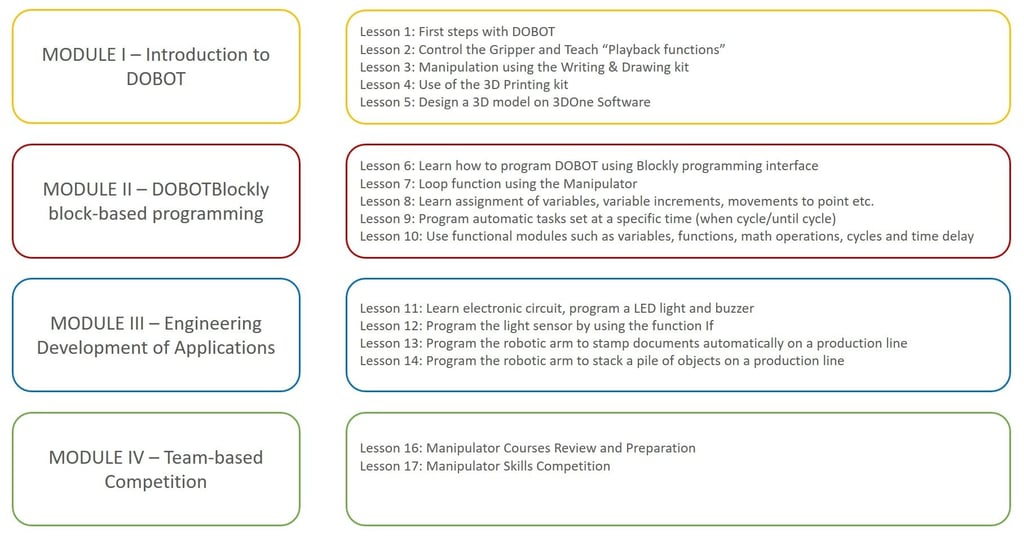

CURRICULUM INCLUDED
Get Access to Comprehensive lesson plans aligned to Common Core and NGSS standards designed for teachers. Our cross-curricular lessons cover Computer Science (using Blockly), Engineering, Collaborative Problem-Solving and Creative Thinking.
